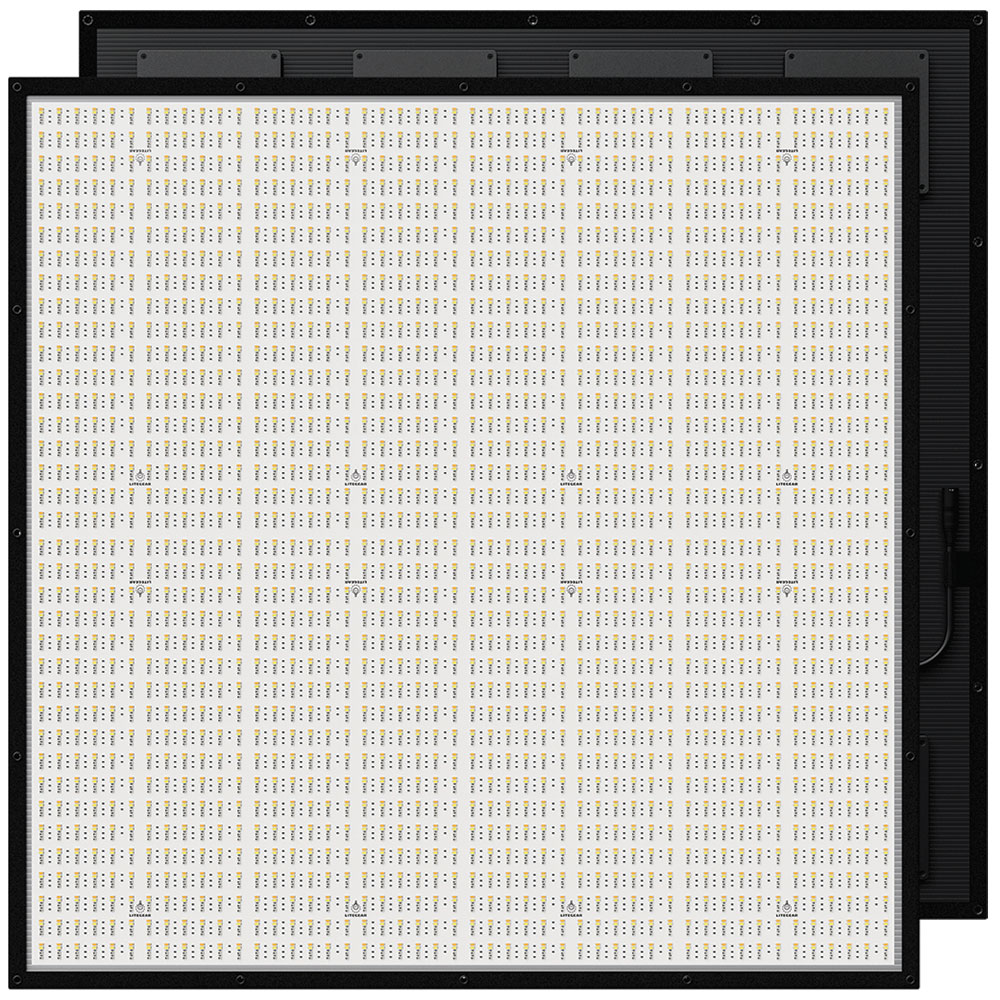

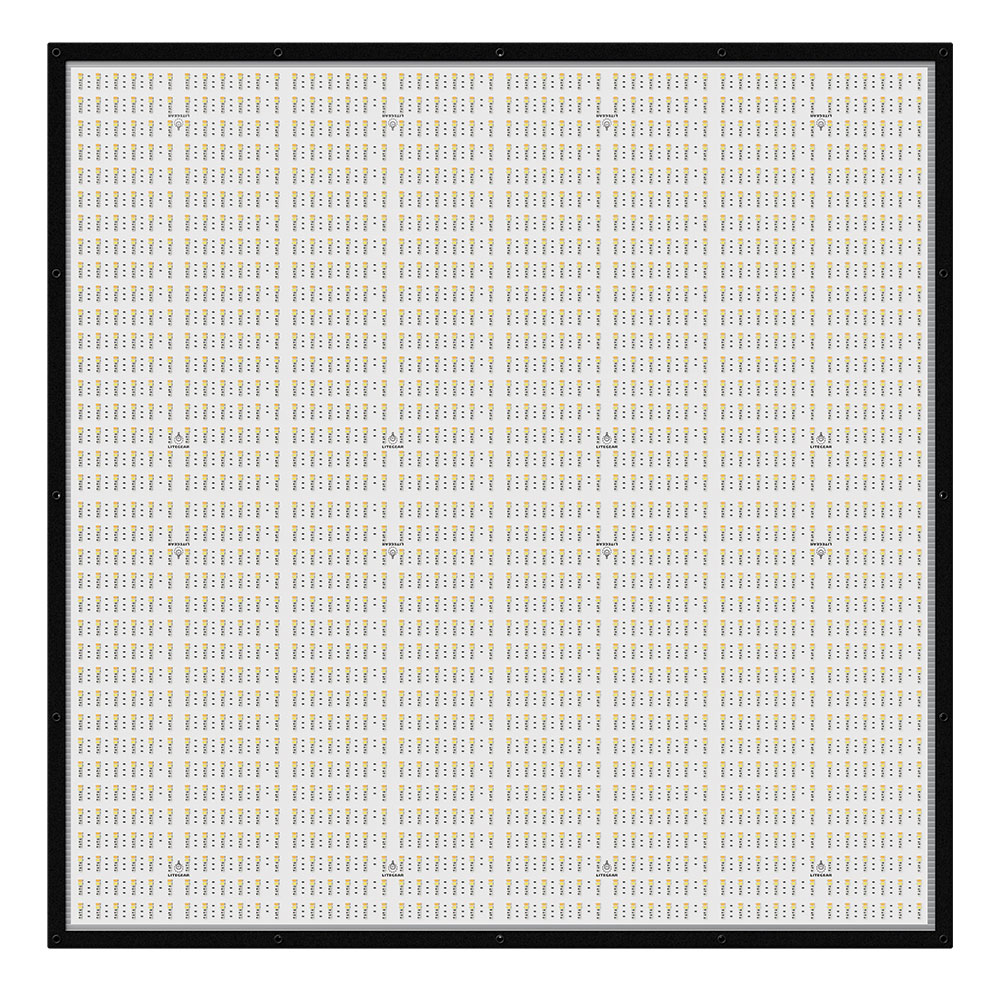

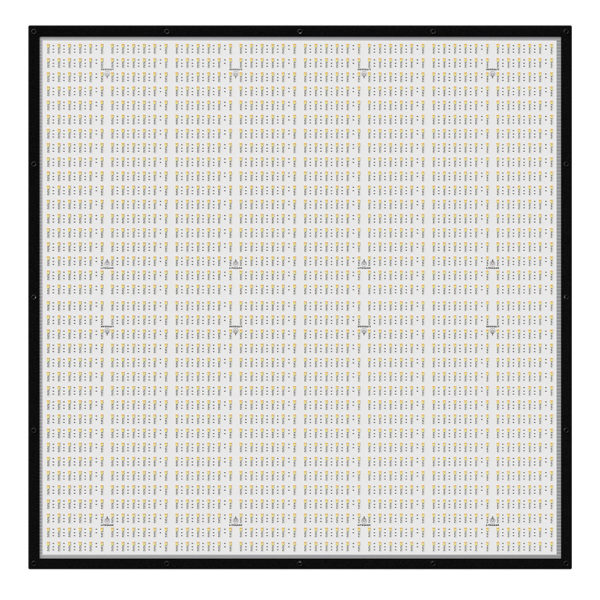

LiteMat Spectrum 8 Kit (2023)

Designed to be rigid, lightweight, ultra-thin, and easy to rig, the versatile LiteMat Spectrum 8 is the go-to lighting solution for stage, studio, or location lighting setups. The evolution of the LiteMat Spectrum includes a more robust design in a feature-packed fixture that will meet your lighting needs now and into the future. Features included in the LiteMat Spectrum 8 include smoother low-end dimming, eight mappable large format pixels, precision-calibrated electronics, and updateable pixel driver firmware.

• LiteMat Spectrum 8 Head (2023)
• LiteDimmer Spectrum AC/DC 400
• LiteMat 8 Full Diffuser
• LiteMat 8 Half Diffuser
• LiteMat 8 Quarter Diffuser
• LiteMat 8 PolySkirt
• PDX Cable, 25 ft.
• kMount
• LiteMat 8 KitBag

Product Name: LiteMat Spectrum 8
Item Number: LM-SPECTRUM-EIGHT-G2
Model: 256-1
Beam Angle: 53º HPA
Input Voltage: 48V DC
Input Current: 8.64A
Total Power: 400W Nominal
Color Temperature Range: 2,000K to 11,000K
Tint Control: Full plus and minus green adjustment
Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer)
Colored Light: 6-color, wide gamut hue and saturation control
Estimated LED Lifetime: 50,000 hrs
Power & Data Connector: PDX
Pixels: 8 large format pixels
IP Rating: IP20
Max Operating Temp: 122°F (50°C)
Weight: 21.1 lbs (9.6 kg)
Color Rendition:
CRI Average: >= 95
TLCI Average: >= 95
Total LED Quantity: 5,184
Dimensions:
Height: 40 in. (1015.5 mm)
Width: 40 in. (1015.5 mm)
Depth: 1 in. (25.4 mm)
Mounting: LiteMount, Extra Large
Certifications: ETL, CE, UKCA, FCC (certification pending)

LiteMat Spectrum 8 (2023) Data Sheet
LiteMat Spectrum 2023 Quick Start Guide
LiteMat Spectrum 2023 User Guide
LiteMat Spectrum Symbols Vectorworks 2024
LiteMat Spectrum Symbols Vectorworks 2023
