LiteDimmer Plus DC100G, 100W, DC Unit, Gold Mount
US $649.00
LiteDimmer+ Plus DC100G is the ideal portable companion for powering +Series fixtures. With a focus on DC input power, the 100W unit can be powered using typical Anton/Bauer- or Gold Mount-compatible batteries. LiteDimmer+ Plus DC100G is compatible with LiteMat+ Plus 1, 2, and 2L.
Available on backorder
LiteDimmer+ Plus DC100G is the ideal portable companion for powering +Series fixtures. With a focus on DC input power, the 100W unit can be powered using typical Anton/Bauer- or Gold Mount compatible batteries. Optionally, an external AC powered, 12 volt power supply can be used and attached to the battery mount with the optional power supply mounting plate. The LiteDimmer+ Plus’ rugged housing includes several different mounting options.
POWER RATING: 100W
VOLTAGE INPUT (BATTERY): 14.4VDC Nominal (10~16VDC) (Gold Mount)
VOLTAGE INPUT (EXTERNAL): 9~40VDC (PL4 Connector), (Pins 1 and 4 – Neg., Pins 2 and 3 + Pos.)
VOLTAGE OUTPUT: 24VDC Constant Voltage, PWM (PL7 Connector)
TRIGGER JACK: 2.5 mm TRS
DIMMING RANGE: 0% to 100% Continuous, Flicker-Free
CONTROLS: On-Board “ON-OFF” Switch, Manual Kelvin Dial, Manual Dimming Dial
SOFTWARE INTERFACE: Proprietary Connector, Service Center Upgradeable
MOUNTING: (4) 1/4-20 Threaded Inserts, Drywall Screw Holes, Velcro®/Cable Tie Slots, Paracord Lanyard
AMBIENT TEMP. OPERATION: –10° to +50° C (14° to 122° F)
IP RATING: IP20
LiteDimmer Plus DC100G Data Sheet
LiteDimmer Plus DC100 - 200 User Guide
LiteDimmer Plus DC100 - 200 Quick Start Guide
Related products
LiteMat Plus Power and Control
LiteMat Plus Power and Control
LiteDimmer Spectrum
LiteMat Plus Power and Control

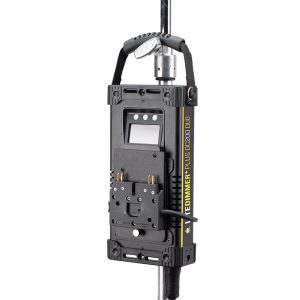

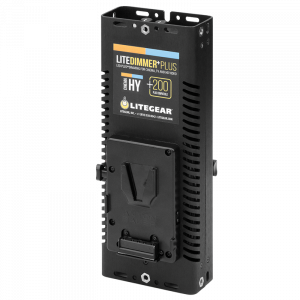

LiteDimmer+ Plus Bundle, 200w DC “DUO”, ON-board, Single, V-Mount
