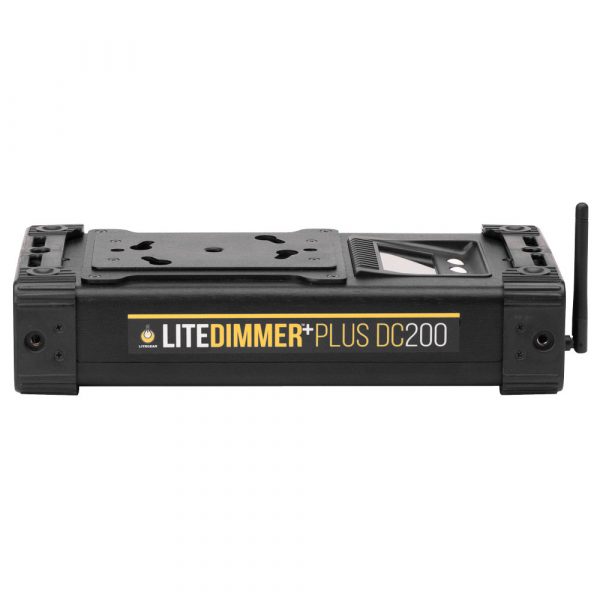

LiteDimmer Plus DC200 DMX, Duo
LiteDimmer Plus DC200 Duo, along with LiteDimmer Plus AC400 Duo are our flagship Plus Series power units. Compatible with all LiteMat Plus, LiteTile Plus, and all Plus compatible “Powered by LiteGear” lighting products.
Available on backorder
LiteDimmer Plus DC200 Duo is one of our flagship Plus Series power units. Compatible with all LiteMat+ Plus™, LiteTile+ Plus™, and all Plus compatible lighting products, the new Plus Dimmer features a large OLED display that provides visual feedback, and integrated wireless radio that acts as both a transmitter and a receiver for the ultimate wireless convenience. The dimmer also comes with advanced features such as load smoothing, local cueing controls, double-circuit control, and a special function that utilizes the integrated wireless card. The unit includes .-20 threaded inserts that make rigging or mounting a simple task. The unit also features K-mount fittings used for attaching mounts and power supplies.
The LiteDimmer Plus DC200 Duo must be powered using the 12V, 250W LitePower Power Supply (PS-12V-250W-F-PL4)
POWER RATING: 200W Nominal
VOLTAGE INPUT (BATTERY): 9~36VDC (PL4 Connector), 14.4 VDC Nominal (One Battery), For LED Loads up to 100W, 14.4 VDC Nominal (Two Batteries), For LED Loads up to 200W
VOLTAGE INPUT (EXTERNAL): 9~36VDC (PL4 Connector) (Pins 1 and 4 – Neg., Pins 2 and 3 + Pos.)
VOLTAGE OUTPUT: 24VDC Constant Voltage, PWM (PL7 Connector)
DIMMING RANGE: 0% to 100% Continuous, Flicker-Free
CONTROLS: On-Board “ON-OFF” Switch, Manual Kelvin Dial, Manual Dimming Dial
SOFTWARE INTERFACE: Proprietary Connector, Service Center Upgradeable
MOUNTING: (4) 1/4-20 Threaded Inserts, Drywall Screw Holes, Velcro®/Cable Tie Slots
AMBIENT TEMP. OPERATION: –10° to +50° C (14° to 122° F)
IP RATING: IP20
