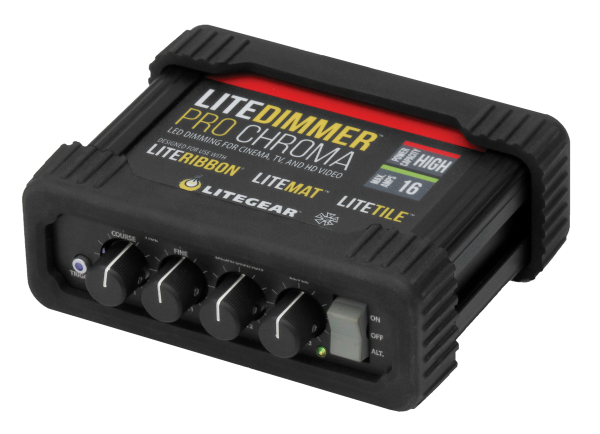

LiteDimmer Pro Chroma is a four-channel, flicker-free LED dimmer. It is the first manual device of its kind to offer hue-saturation-intensity (HSI) control of RGB and RGBW/A LiteRibbon specifically for the cinema, TV, and HD video industry. In addition to color mixing, LiteDimmer Pro Chroma can also dim Single and Hybrid LiteRibbon as well.
Features
- Hybrid, RGBW, RGBA Profiles with Advanced Modes
- Integrated LiteEFX Modes
- Manual Operation with DMX Output
- “Aaaaand Action!” Cueing with Local and Remote Triggers
- Flicker-Free
- Rubber Bumpers with Integrated Magnets for Mounting and Protection of Delicate Surfaces
- Cold Shoe Adapter Slot for Mounting
- High Capacity (16A Max.)
High Capacity (16A) Version
RATING: 16a max. total; 16A max. per channel
INPUT: 10~50VDC (Connector: PH2)
OUTPUT: Constant Voltage, PWM (Connector: PH6)
PROTOCOL: DMX512
DMX OUTPUT JACK: 3.5mm TRS
TRIGGER JACK: 2.5MM TRS
SIZE: 90.2 mm (3.55 in.) length, 121.4 mm (4.78 in.) width, 44.5 mm (1.75 in.) height
WEIGHT: 0.74 lb, 0.337 kg
- LiteDimmer Pro Chroma
- User Guide
