Introducing the finest and most adjustable hybrid LED LiteRibbon available. The new revolutionary Cine-Five features cinema quality 95+ CRI hybrid with the ability to add in crisp RGB color accents. This is achieved by using the single best-applied phosphor LEDs available in the industry.
While Cine-Five is technically part of the Chroma family, at its core, it’s essentially LiteGear’s truly most adjustable Hybrid LiteRibbon. Add in teal or magenta, or any color you desire to your high CRI whites. You’ll never have to worry about adding active gel colors to your LiteRibbon again. You will always feel prepared for anything a set demands from you because Cine-Five is never the wrong answer; it can be absolutely anything.

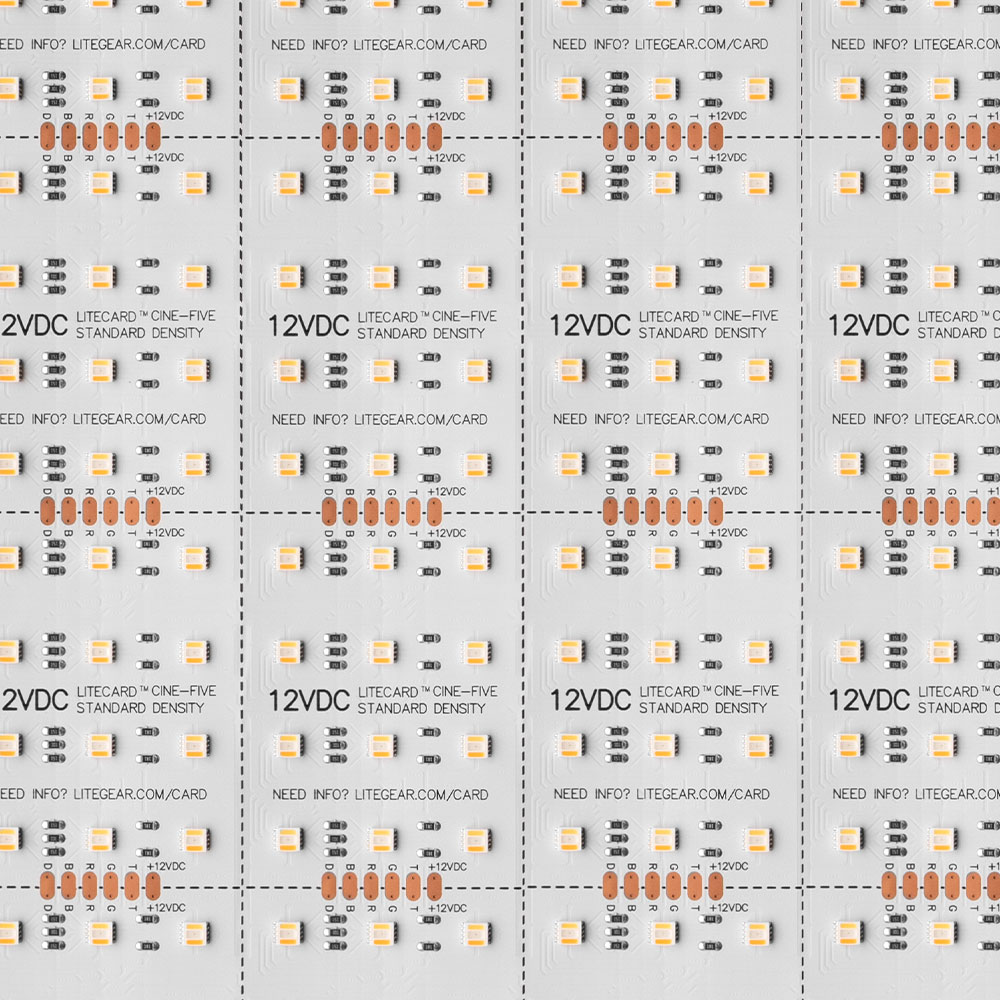

Cine-Five LiteCard includes LiteGear’s popular MagicBus™ feature. The solder pads on the card will be staggered in between the LED’s and the cut points, which means bussing will be 90% faster and easier. Cine-Five LiteCard is available in 12V and 24V versions. It will make the perfect companion to LiteGear’s Studio 5X8 Dimmer, which has a built-in Cine-Five mode that will make the user experience incredibly streamlined and simple.
Item Number:
Optical System:
Color Name:
Voltage Input:
Current:
Power:
CCT:
CRI:
TLCI:
Beam Angle:
Connector:
Lumens (lm) Whites:
Lumens (lm) Colors:
Color Space Compliant:
Green/Magenta:
Weight:
PCB Dimensions:
Card Overall Thickness:
Segment Dimensions:
Segments per Card:
Total LED Quantity:
LEDs per Cut Segment:
LED Spacing:
Dimming Range:
Mounting:
Operating Temperature:
LED Lifetime:
IP Rating:
Certifications:
LCC-12-RGBHY-SD-2448
Flexible LED card
Cine-Five
12VDC Nominal (8-13.5VDC) Constant Voltage
8.33A (total potential current per card)
100W (total potential power per card)
Hybrid 2600K (+/-300K) & 6000K (+/-300K)
95+ (Tungsten), 95+ (Daylite)
95.8 (Tungsten), 98.1 (Daylite)
120°
Bare Wire
1647.0 (Tungsten), 1752.5 (Daylite)
667.6 (Red), 1315.1 (Green), 342.8 (Blue)
Yes (with appropriate controller)
Yes (with appropriate controller)
0.428 lbs. (0.19 kg) including wire lead
240mm (9.45 in.) x 480mm (18.90 in.)
2.2mm (0.087 in.)
60mm (2.36 in.) x 80mm (3.14 in.)
24
288
12
20mm (.79 in.)
0-100%
Adhesive backing
10°C to +50°C (14°F to +122°F)
50,000 Hrs
20
UL Listed (Canada/US), CE Compliant (Europe)
Included with your LiteCard purchase is:
- LED LiteCard
- Attached power lead
- Re-closable Anti-static bag
LiteCard Cine-Five Data Sheet
