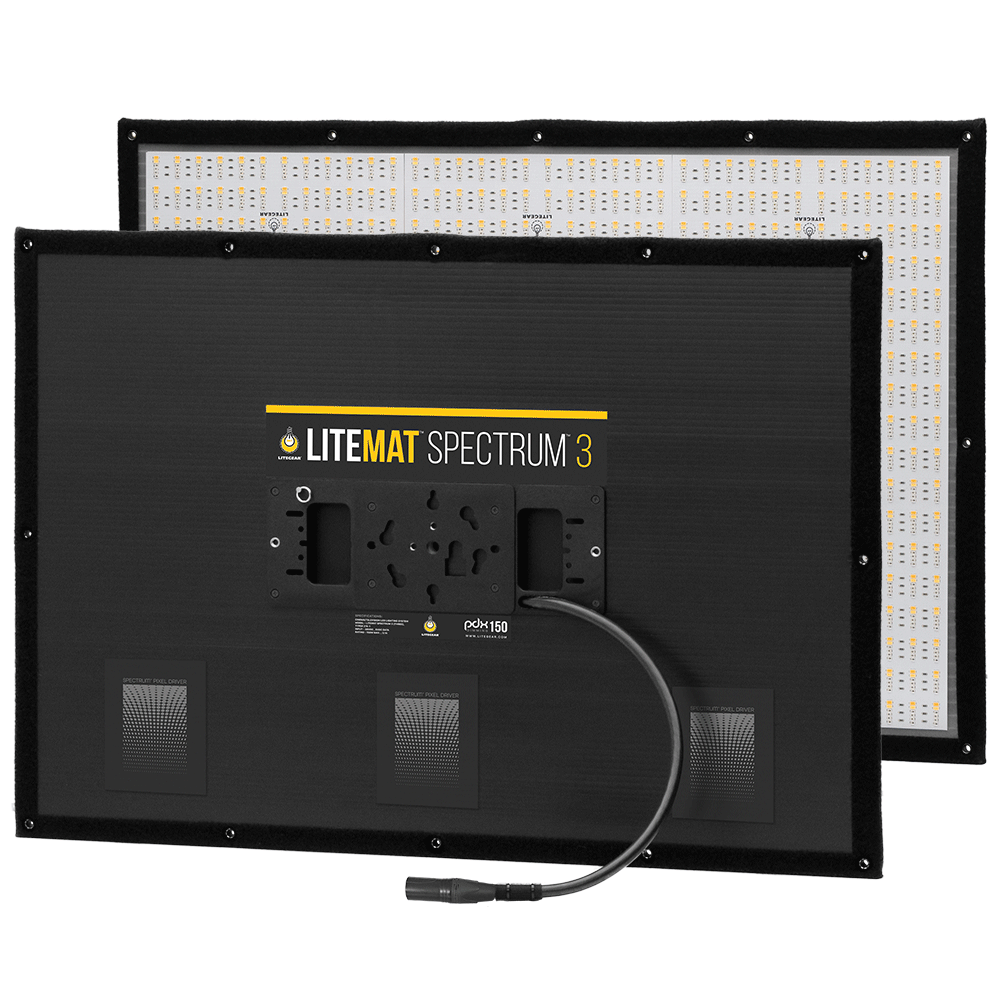

LiteMat Spectrum 3 Kit
LiteMat Spectrum THREE Kit
LED LiteMat, the ultra-thin and mount anywhere light fixture has been the choice of thousands of professionals worldwide.
This next generation is more capable than ever, with:
Full Color Control
Expanded Kelvin Temperature range
Full Spectrum De-Saturation
Plus / Minus Green Correction
Large Format Pixel Control
REC-709 Color-Space Compliance (an industry first!)
Dimensions and weight of the light fixtures
LiteMat ONE 0.9” (23mm) X 11.5” (292mm) X 21” (533mm), 2.6 lbs (1.2kg).
LiteMat TWO 0.9” (23mm) X 21” (533mm) X 21” (533mm), 3.9 lbs (1.8kg).
LiteMat TWO-LONG 0.9” (23mm) X 11.5” (292mm) X 40” (1016mm), 3.9 lbs (1.8kg).
LIteMat THREE 0.9” (23mm) X 21” (533mm) X 30.5” (775mm), 4.9 lbs (2.2kg).
LiteMat FOUR 0.9” (23mm) X 21” (533mm) X 40” (1016mm), 6.3 lbs (2.9kg).
LiteMat ONE is 2548 lumens
LiteMat TWO is 5096 lumens
LiteMat TWO-LONG is 5096 lumens
LIteMat THREE is 7644 lumens.
LiteMat FOUR is 10192 lumens
LEDs Per Fixture
LiteMat ONE includes 216 LEDs of each color. A total of 1296 emitters per fixture.
LiteMat TWO includes 432 LEDs of each color. A total of 2592 emitters per fixture.
LiteMat TWO-LONG includes 432 LEDs of each color. A total of 2592 emitters per fixture.
LIteMat THREE includes 648 LEDs of each color. A total of 3888 emitters per fixture.
LiteMat FOUR includes 864 LEDs of each color. A total of 5184 emitters per fixture.
How do the fixtures compare to the Skypanel, the MIX or the FreeStyle in light output?
Watt for Watt the LiteMat Spectrum is a little brighter than these fixtures (based on published data for each of these manufacturers)
Arri Skypanel S30-C
Comparing LiteMat Spectrum 4, rated at 200W, with no diffusion, vs the Skypanel S30-C, also rated at 200W, with the standard diffusion; LiteMat Spectrum 4 is about 14% brighter. The difference is that the Skypanel has an 11.8” X 14” light emitting surface vs 18.8” x 37.8” for LiteMat Spectrum 4. We spread the light over a larger area to produce beautiful soft light. The Skypanel S30-C weighs 16.3 lbs vs 6.2 lbs for the LiteMat Spectrum 4.
Rosco / DMG Lumiere SL1 MIX
Comparing LiteMat Spectrum 4 (200W, no diffusion) vs DMG Lumiere SL1MIX (200W, no diffusion); LiteMat Spectrum 4 is about 26% brighter. The SL1MIX has a light emitting area 7.8” X 14”, the LiteMat Spectrum 4 has a light emitting area is 18.8” X 14” , so we spread the light over a larger surface to produce beautiful soft light. The SL1MIX weighs 9.2 lbs vs 6.2 lbs for LiteMat Spectrum 4.
KinoFlo FreeStyle 21
Comparing LiteMat Spectrum 3, rated at 150W, no diffusion, vs the KinoFlo FreeStyle 21 (Panel Only), rated at 150W, standard diffusion; LiteMat Spectrum 3 is about 50% brighter. The Freestyle 21 has a light emitting surface 11.5” x 23.5” vs LiteMat Spectrum 3 light emitting surface 18.8” X 28.3”. The FreeStyle 21 (panel only) weighs 7 lbs, LiteMat Spectrum 3 weighs 4.8 lbs.
We have great respect for the products listed above and great admiration for the development teams at each company. We are honored and humbled to be able to compare our LiteMat Spectrum fixtures with these existing and great products. -A.D.
This preconfigured LiteMat kit includes:
(1) LiteMat™ Spectrum, Head
(1) LiteMat™ PolySkirt™
(1) LiteMat™ Diffuser Set, Quarter, Half, and Full “Grid”
(1) LiteMat™ Parasquare® Louver
(1) LiteMat™ LiteMount™
(1) LiteMat™ KitBag™
(1) LiteDimmer Spectrum™ DC200, 200W DC Ballast
(1) LitePower™ Supply, 250W
(1) PDX Head Extension, 25 Feet
(1) Power Supply holder, kMount
