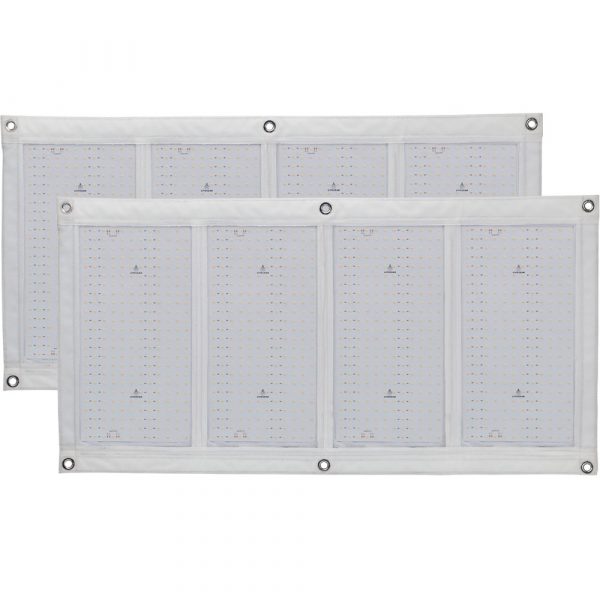

LiteTile Plus Kit, 4×4, Hybrid, Complete Kit

LiteTile Plus is the first foldable LED lighting fixture made completely with engineered textiles. LiteTile Plus 4 allows the user to install thin, soft, and adjustable Kelvin light into areas previously inaccessible. Because LiteTile+ Plus folds up to 180º between each light engine, the luminaire can be shaped into numerous configurations allowing for 360º, two-sided, or irregularly shaped setups. LiteTile Plus 4 can be directly attached to walls or ceiling surfaces such as office drop-ceilings with just spring-clips or tape. The LiteTile Plus 4 really shows its versatility when two units are coupled together and attached to a overhead/buttery 4’ x 4’ frame. That is 400 watts and more than 4600 cinema quality emitters creating ultra-soft Hybrid light output without the need for additional diffusion.

• (2) LiteTile Plus 4 Head Units
• LiteDimmer Plus AC 400
• (2) PL7 Extension Cables, 12 ft
• PL7 Twofer

POWER RATING: 200W
INPUT VOLTAGE: 24VDC
CURRENT DRAW: 8.33A
LED QUANTITY: 2304
DIMMING RANGE: 0 to 100% continuous* *When paired with a compatible LiteGear Dimmer
MOUNTING: Velcro®-Lined Border (Front and Back) Large Eyelets for Sash Cord or Cable Ties Optional LiteBox Frame
AMBIENT TEMP. OPERATION: –10° to +50° C (14° to 122° F)
IP RATING: IP50
