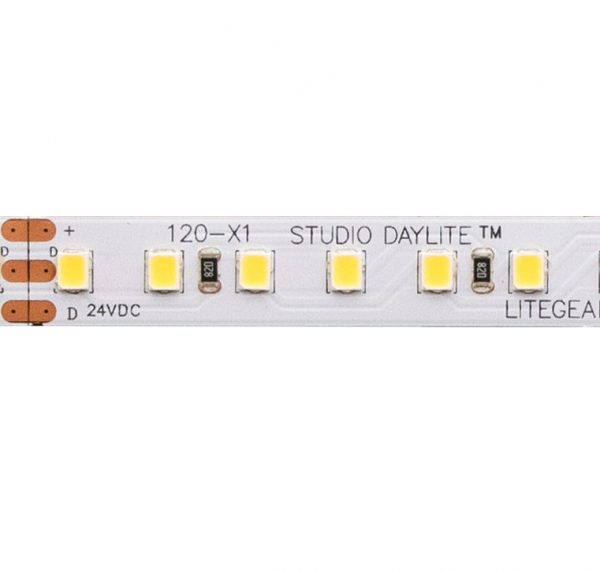

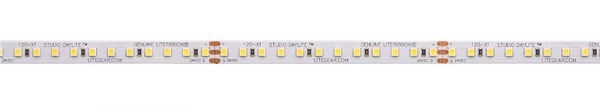

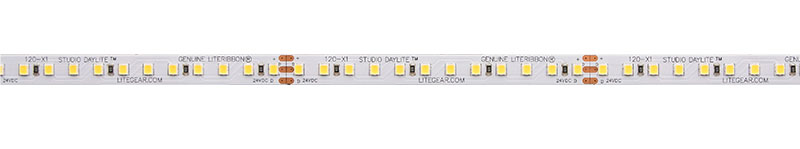

LiteRibbon Studio, Daylite, 6000K, X1, 24V, 5 m

The LiteGear Studio Series of LED LiteRibbon, is an affordable, color-correct, studio-grade material designed for high volume installations across multiple departments. Its primary focus is on affordability. Rest assured that Studio Series is genuine LiteRibbon, back by LiteGear with the rock-solid reliability you’d expect.

Power: 100W (total potential power per 5 meter roll)
Voltage Input: 24V DC nominal (16-26V DC constant voltage)
Current: 4.17A (total potential current per 5 meter roll)
CCT: 6000K (+/–100K)
CRI: 95
TLCI: 95
Beam Angle: 120°
Lumens: 1988.9
Weight: 0.9 kg. (3.1oz.) (with input lead)
Width: 10 mm (0.47 in.)
Length: 5 m (16.4 ft) or 20 m (65.6 ft)
Ribbon Overall Thickness: 1.5 mm (0.06 in.)
Cut Segment Length: 100 mm (3.94 in.)
Cut Segments per Meter: 10
Total LED Quantity: 600
LEDs per Meter: 120
LEDs per Cut Segment: 12
LED Spacing: 8.3 mm (0.33 in.) Center to Center
Dimming Range: 0-100%
Operating Temperature: -20°C to +50°C (68°F to +122°F)
Connector: Phoenix 3-Female
Mounting: PSA backing
LED Lifetime: 50,000 Hrs
IP Rating: 20
Certifications: UL Listed (Canada/US), CE Compliant (Europe)

LiteRibbon Studio Daylite X1 Data Sheet
