LiteMat Plus 3 Kit with LiteDimmer Plus (Non-DMX)

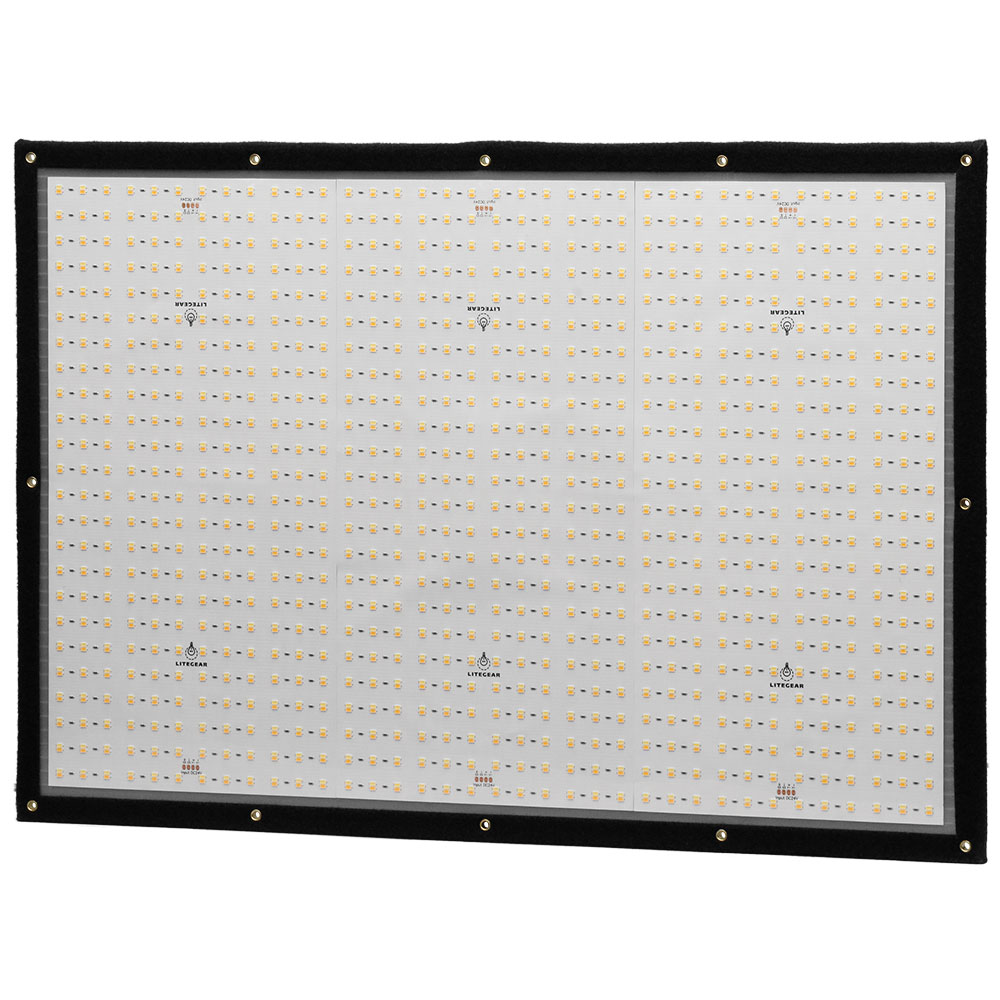

LiteMat Plus 3 is a lightweight LED lighting fixture system designed for cinema, television, and HD video. By providing evenly spaced, color-correct LEDs spread out over a large area, LiteMat creates soft light without requiring diffusion. The “soft-through-pixelization” method allows the unit to achieve bright light levels while remaining 0.9 in. (23 mm) thick in size and 4.8 lb (2.18 kg) in weight.

• LiteMat Plus 3 Head
• LiteDimmer Plus 200W
• LiteMat 3 Full Diffuser
• LiteMat 3 Half Diffuser
• LiteMat 3 Quarter Diffuser
• LiteMat 3 PolySkirt
• LiteMat 3 Parasquare Louver
• PL7 Cable, 12 ft.
• kMount
• LiteMat 3 KitBag

Power: 150W
Voltage: 24VDC
Current: 6.25A
LED Qty: 1728
Weight: 4.8 lbs (2.18 kg)
Height: 21 in. (533 mm)
Width: 30.5 in. (775 mm)
Length: .9 in. (23 mm)

LiteMat Plus 3 Data Sheet
LiteMat Plus Catalog
LiteMat Plus, LiteTile Plus, and Legacy Library Vectorworks 2021
