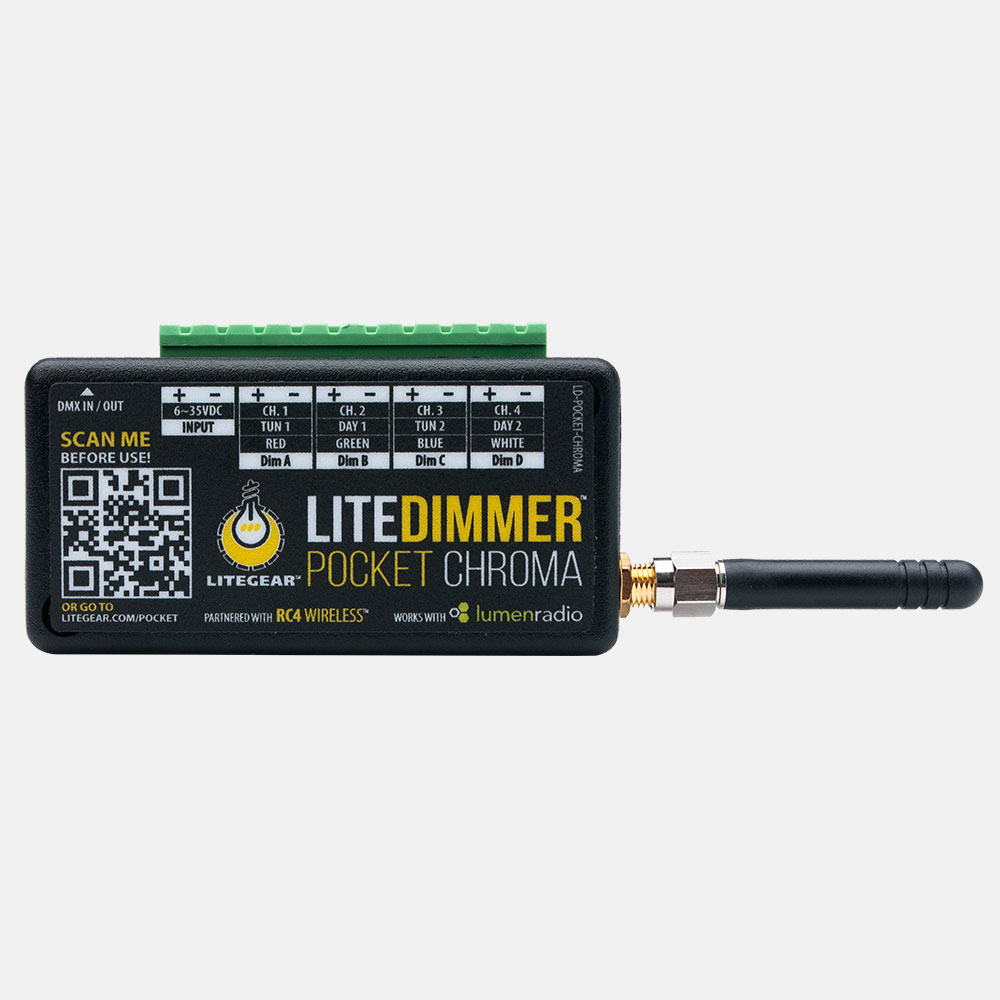

LiteDimmer Pocket, Chroma, 4X4
US $899.00
Available on backorder
The LiteDimmer Pocket Series is an ultra-compact LED controller system. The Pocket Chroma and Hybrid dimmers incorporate advanced RF receivers along with dimming circuits in a compact housing, making them ideal for use with costumes or props, such as lanterns. LiteGear worked with RC4 to develop the product using Lumen Radio technology, giving the dimmer not only rock-solid performance but compatibility with many third-party wireless transmitters and receivers.
Features
- 4×4 Wireless Receiver
- LiteGear Actuator Tool, 2-Pack
- LiteGear Screwdriver, Slotted
- Cable Assy, TRS (headphone) to RJ45, TWO foot
- User Guide
- Phoenix Connector, 2-pin, Female
- (2) Phoenix Connector, 4-pin, Female
- LiteDimmer Pocket, Chroma RGBX LiteRibbon Adapter
- Zippered Bag
SIZE: 0.80” x 1.77” x 3.15” (20.3mm x 45.0mm x 80.0mm)
WEIGHT: 1.9 oz, 54g
SUITABLE AWG SIZES FOR I/O: 24-12 AWG
INPUT: 6-35 VDC
RATING: 16A Max Total – 4A Max per channel
OUTPUT: Constant Voltage, PWM
ANTENNA: RP-SMA
LiteDimmer Pocket Chroma Users Guide
LiteDimmer Pocket Chroma User Guide includes specifications, connecting power and load, connecting to DMX, setting response style, setting dimmer mode, and other.
