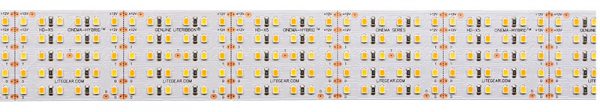

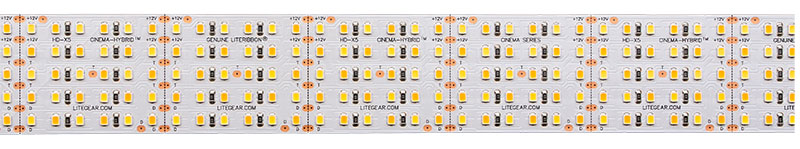

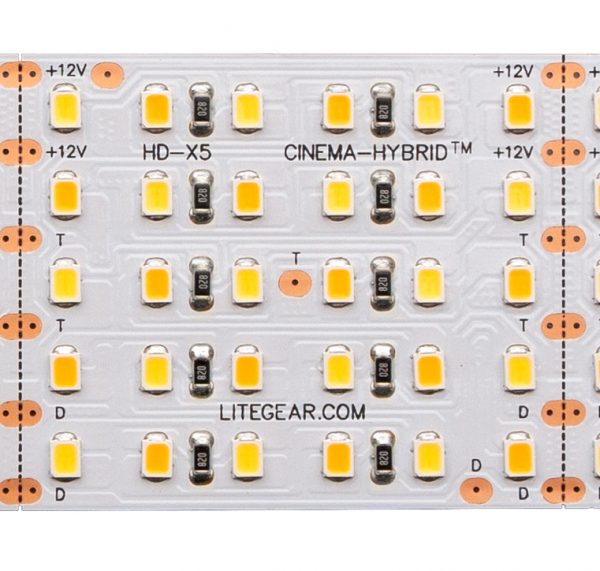

LiteRibbon Cinema Hybrid, X5, 12V, 1 m

The Cinema Series of LED LiteRibbon is the single best applied phosphor LED product available in the industry. With staggering CRI and full-spectrum output, the Cinema Series is 30% brighter than the previous VHO Pro LiteRibbon. This all-new LiteRibbon proudly joins the LiteGear Cinema family of unified color-space products including S2 LiteMat, LiteMat Plus, and LiteTile Plus.

Power: 100W (total potential power per roll)
Voltage Input: 12V DC nominal (8-13.5V DC constant voltage)
Current: 8.33A (total potential current per 1 meter roll)
CCT: Hybrid 2600K (+/–100K), 6000K (+/–100K)
CRI: 95+ (2600K), 95+ (6000K)
TLCI: 96.2 (2600K), 98 (6000K)
Beam Angle: 120°
Lumens per Meter: 3871.7 (2600K), 4761.5 (6000K)
Weight: .09 kg. (3.1 oz.) (with input lead)
Width: 41.65 mm (0.47 in.)
Length: 1 m (39 in.)
Ribbon Overall Thickness: 1.5 mm (.06 in.)
Cut Segment Length: 50 mm (1.96 in.)
Cut Segments per Meter: 20
Total LED Quantity: 600
LEDs per Meter: 600
LEDs per Cut Segment: 30
LED Spacing: 8.3 mm (0.33 in.) Center to Center
Dimming Range: 0-100%
Operating Temperature: -20°C to +50°C (68°F to +122°F)
Connector: Phoenix 3-Female
Mounting: PSA backing
LED Lifetime: 50,000 Hrs
IP Rating: 20
Certifications: UL Listed (Canada/US), CE Compliant (Europe)

LiteRibbon Cinema Hybrid X5 Data Sheet
