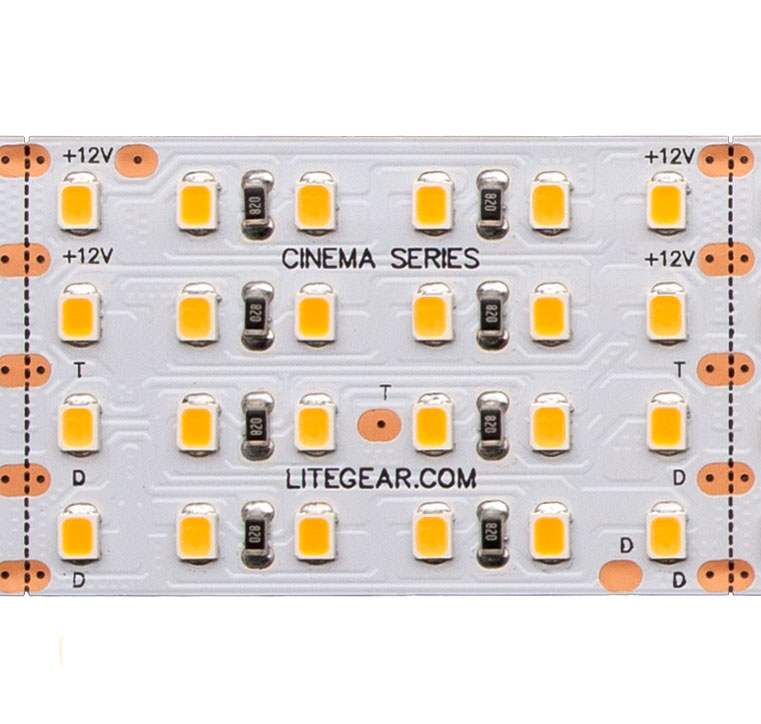

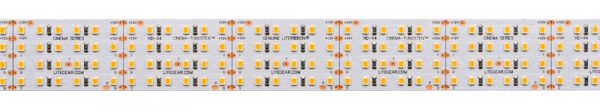

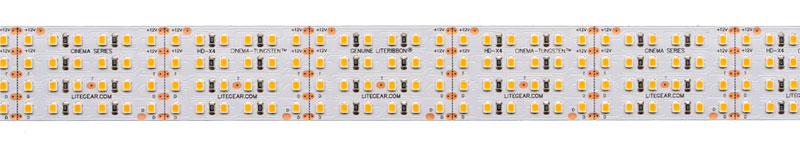

LED LiteRibbon, Cinema Series, High Density-X4, TUNGSTEN, 1.25 Meter, 12V
List Price $229.99Discounted Price $206.99
Description
The flexible LED product that started it all, LiteRibbon, is all new for 2019.
Simply, the best flexible LED in the market, with a significantly lower price that its predecessor. Its main feature is it’s Cinema “color-space” with output that perfectly matches the thousands of LiteMat and LiteTile products currently available. It achieves this with the single best applied phosphor LEDs available in the industry. With ultra high CRI and full-spectrum output, the Cinema Series is also 30% brighter than the previous VHO Pro LiteRibbon.The all-new unified connectivity system.
All the new Cinema and Studio LiteRibbon models include unified connectivity using the same 3-conductor cable and ubiquitous PH3 connectors. This allow the use of our growing models of LiteDimmer Hybrid LED dimmers including Micro, Pro, and the new Pocket series of controllers. Additionally, the power (watts) applied to each LED is the same¹ regardless of output color. This makes it easy to calculate required power sources, dimmers, and connectivity.The Cinema Series includes four shades of white which are 2600k, 3000k, 4000k, and 6000k.
In addition, saturated colors such as VFX Red, VFX Green, VFX Blue, and VFX Amber are available. When cinema-whites are combined with VFX colors, specialize color spaces are created including VFX blue screen and green screen, 26k and Amber for Fire effects, 6k and Blue for ultra-daylite along with others. See the options below and contact us about special orders.| Cinema Single, Tungsten at 2600k |
| Cinema Single, Classic Tungsten at 3000k |
| Cinema Single, MidDay™ at 4000k |
| Cinema Single, Daylite at 6200k |
| Cinema Single VFX, Red at 625 nm |
| Cinema Single VFX, Green at 522 nm |
| Cinema Single VFX, Blue at 467 nm |
| Cinema Single VFX, Amber at 592 nm |
| Cinema Single UV, UVA Blacklight-Blue at 400 nm |
| Cinema “Deep” Hybrid, adjustable between 2600k and 3000k |
| Cinema “Warm” Hybrid, adjustable between 2600k and 4000k |
| Cinema Hybrid, adjustable between 2600k and 6200k |
| Cinema “Classic” Hybrid, adjustable between 3000k and 6200k |
| Cinema “Mid” Hybrid, adjustable between 3000k and 4000k |
| Cinema “Day” Hybrid, adjustable between 4000k and 6200k |
| Cinema “Deep Fire” Hybrid, combines 2600k with saturated Amber |
| Cinema “Classic Fire” Hybrid, combines 3000k with saturated Amber |
| Cinema “VFX” Hybrid, combines VFX Blue with VFX Green |
In addition to the many color variations, Cinema LiteRibbon is also available in multiple row options.
These options are named X1, X2, X3, X4, X5, and X6, and are rated based on a watts-per-meter (w/m) unit of measure. As an example, Cinema X1 is 20w/m (10w per color per meter, w/c/m), 10mm wide, with 5 meter maximum length. Available in 12v or 24v, that current is 8 amps and 4 amps max respectfully. See the chart below for the details of all mechanical variations.| Model No. | Width | Power | Voltage |
| Cinema Standard X1, 20w | 10mm | 20w/m (10w/c/m) | 12V/24V |
| Cinema Standard X2, 32w | 16mm | 32W/m (16W/color) | 12V/24V |
| Cinema Standard X3, 50w | 25mm | 50W/m (25W/color) | 12V/24V |
| Cinema Standard X4, 64w | 32mm | 64W/m (32W/color) | 12V/24V |
| Cinema Standard X6, 100w | 50mm | 100W/m (50W/color) | 12V/24V |
Technical Specs
| Product Line | LiteRibbon |
| Product Series | Cinema Series |
| Product Description | HD-X4 |
| Product Length | 1.25 Meters |
| Color Name | Tungsten White |
| Color Details | 2600K |
| Chromaticity (CIE 1931) | x-0.4646 , y-0.4065 |
| Color Consistency | + / – 100K |
| Product Markings | Tungsten |
| Color 1 (of 2) | 2600 |
| Color 2 (of 2) | 2600 |
| X Series | X4 |
| Rated DC Voltage | 12 |
| Input Voltage (Range, DC) | 8 ~ 13.5 |
| Nominal Input Voltage (DC) | 12 |
| Input Voltage (Max., DC) | 14 |
| Watts / LED | 0.1667 |
| Ma / LED | 0.139 |
| LEDs / Segment | 24 |
| LEDs / PCB | 240 |
| LEDs / Meter | 480 |
| Watts / Segment | 4 |
| Watts / PCB | 40 |
| Watts / Meter | 80 |
| Watts Total | 100 |
| LED Quantity | 600 |
| Amps / Segment | 0.33 |
| Amps / PCB | 3.33 |
| Amps / Meter | 6.67 |
| Amps / Total | 8.33 |
| LED Pitch | 8.33 |
| PCB width (mm) | 33.32 |
| PCB length (mm) | 500 |
| Segment Length (mm) | 50 |
| Max. length (mm) | 1250 |
| Segments / PCB | 10 |
| PCB Mask Color | |
| Rear Mounting Material | |
| Input Lead Length (mm) | 500 |
| Input Connector | PH3.F |
| Lead Conductor Qty | 3 |
| Number of Circuits | 2 |
| Connection Type | Solder |
| Power Supply Type | C.V. (Constant Voltage) |
| Indoor/Outdoor | Indoor |
| Operating Ambient Temp. (C) | -20 ~ +50 |
| Max. Operating Temp (C) | 58ºF (70ºC) |
| Storage Temp (C) | -30 ~ +80 |
| Thermal Requirements | |
| CRI ra | 98 |
| CQS-Qa | 97 |
| TLCI | 94 |
| TM-30 Rf | 93 |
| TM-30 Rg | 98 |
| Part No. | |
| Typical Availability | |
| PCB Material | 2 Layer Adhesiveless Flex |
| Min. Bend Radius* (mm) | 20 |
| Emitter Type | 2835 |
| IP Rating | IP 20 |
| Rated Life (Hours) | 50000 |
| Humidity% | 85, non condensing |
| Safety Certification | cULus, CE |
| RoHs Compliant | Yes |
| Beam Angle | 120 |
| lm/Segment | |
| Lumens per meter | |
| Luminous Efficacy lm/W |
What’s included?
Included with your LiteRibbon purchase is:
- LED LiteRibbon
- Attached power lead
- Pre-installed PH3.F connector
- Re-closable Anti-static bag
- Simple how-to instructions
