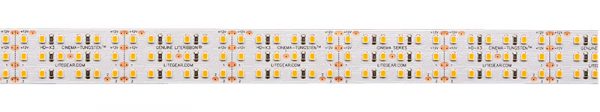

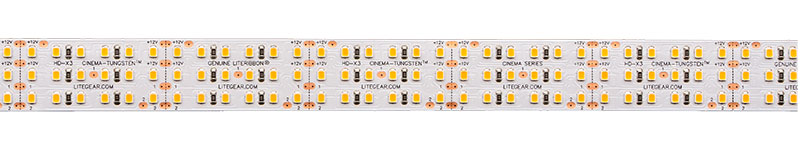

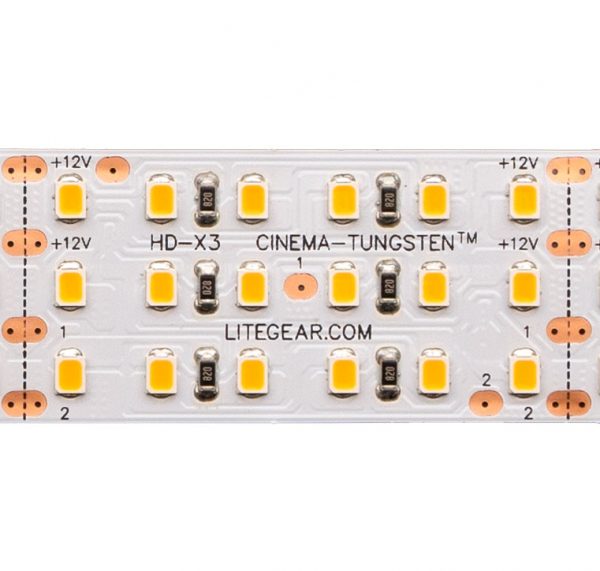

LiteRibbon Cinema Tungsten, X3, 12V, 1.5 m

The Cinema Series of LED LiteRibbon is the single best applied phosphor LED product available in the industry. With staggering CRI and full-spectrum output, the Cinema Series is 30% brighter than the previous VHO Pro LiteRibbon. This all-new LiteRibbon proudly joins the LiteGear Cinema family of unified color-space products including S2 LiteMat, LiteMat Plus, and LiteTile Plus.

Power: 90W (total potential power per 1.5 meter roll)
Voltage Input: 12V DC nominal (8-13.5V DC constant voltage)
Current: 7.5A (total potential current per 1.5 meter roll)
CCT: 2600K (+/–100K)
CRI: 95
TLCI: 98
Beam Angle: 120°
Lumens: 4693.2
Weight: .08 kg. (2.75 oz.)
Width: 25 mm (0.99 in.)
Length: 1.5 m (4.9 ft)
Ribbon Overall Thickness: 1.5 mm (0.06 in.)
Cut Segment Length: 50 mm (1.96 in.)
Cut Segments per Meter: 20
Total LED Quantity: 540
LEDs per Meter: 360
LEDs per Cut Segment: 18
LED Spacing: 8.3 mm (0.33 in.) Center to Center
Dimming Range: 0-100%
Operating Temperature: -20°C to +50°C (68°F to +122°F)
Connector: Phoenix 3-Female
Mounting: PSA backing
LED Lifetime: 50,000 Hrs
IP Rating: 20
Certifications: UL Listed (Canada/US), CE Compliant (Europe)

LiteRibbon Cinema Tungsten X3 Data Sheet
