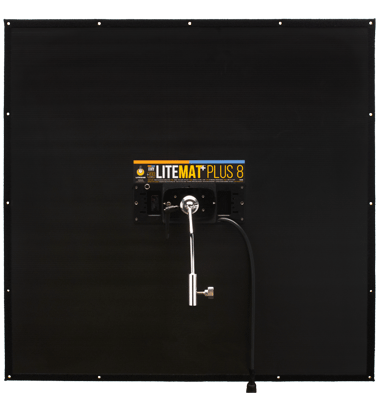

LiteMat Plus 8 Kit, AC 400

The LiteMat Plus 8 is one of the most affordable, professional cinema lighting fixture available today. The largest LiteMat in the line makes a great self-lit 4×4, all from a single light stand. The LiteMat+ Plus 8 is based on eight “tiled” light engines. The head unit features 1152 new CineMitter LEDs and is covered by a thin, clear polycarbonate layer and bordered entirely with Velcro. “loop” fastener. Its lightweight (10.4 lb) and thin profile (0.9 in.) make this fixture ideal for any lighting challenge you encounter.

• LiteMat Plus 8 Head
• LiteDimmer Plus AC 400W
• LiteMat 8 Full Diffuser
• LiteMat 8 Half Diffuser
• LiteMat 8 Quarter Diffuser
• LiteMat 8 PolySkirt
• PL7 Cable, 12 ft.
• kMount
• LiteMat 8 KitBag

Power: 400W
Voltage Input: 24VDC
Current: 16.67A
CCT Range: 2600K-6000K
CRI: 95+
TLCI: 95+
Total LED Quantity: 4608
Lumens: 20384
Weight: 10.4 lb., (4.7 kg.) w/ Cable.
Height: 40 in. (1016 mm)
Width: 40 in. (1016 mm)
Depth: 0.9 in. (23 mm)
Operating Temperature: -10°C to +50°C (-14°F to +122°F)
Cable: Attached PL7 Cable
Mount: LiteGear LiteMount XL

LiteMat Plus 8 Data Sheet
