Exalux Control One Specifications

Technical Specifications

Display:  TFT 5.0″ 800×400 pixels, Capacitive Touch, Super Bright

Control:  Master and Settings (Knobs), Memory Store/Restore, CRMX Link, Black-Out, Lock

DMX In / Out:  Input: Neutrik XLR 5 Pins-Male | Output: Neutrik XLR Pins-Female

Power Consumption:  Min: 2.1W (Screen Off) | Max: 4.2W (Screen and CRMX On) | Standby: 0.025W

Power Input:  Neutrik XLR 4 Pins (10-24VDC) Micro USB (5VDC)

Housing / Construction:  Aluminum

IP Rating:  IP30

Certifications:  CE, RoHS

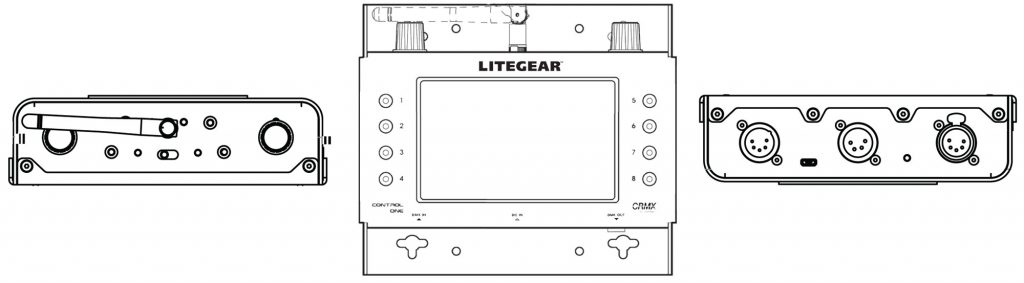

Height:  7.1 in. (180.3 mm)

Width:  6.1 in. (152.4 mm)

Depth:  2 in. (50.8 mm)

Weight:  1.5 lb (0.7 kg) without battery

Radio Interface

Standard / Technology:  CRMX by LumenRadio™

Frequency:  2402 ~ 2480 GHz

Antenna Connector:  RP-SMA (female)

RF Output:  20 dBm (100mW)

RF Modulation:  GFSK

Range:  500-1000m (Depending on the receiver and the environment)

DMX Interface

Protocol:  DMX512-A

Universe Support:  1

DMX Input:  Neutrik XLR 5 pin male

DMX Output:  Neutrik XLR 5 pin female

Operating Conditions

Input (USB):  4.5VDC Min., 5VDC Avg., 5.5VDC Max.

Input (XLR4):  10VDC Min., 14VDC Avg., 24VDC Max.

Storage Temperature:  -22°F (-30°C) Min., 176°F (80°C) Max.

Operating Temperature:  -4°F (-20°C) Min., 77°F (25°C) Avg.,  140°F (60°C) Max.

Apps and Features

Fader:  Virtual DMX console | 512 sliders | 1 master | 8 memories | Black-out, Full On

Fixture:  Fixture controller | Up to 40 fixtures | DMX libraries with the most popular lighting fixtures

Recorder:  Real time DMX Recorder | 8 memories | 80s recording @44Hz max

Player:  3 x 8 bank Memories Player center

                -Fader | Fixture : 8 memories | Made time + Master settings

                -Recorder : 8 memories | 1 time / loop mode

TX:  2.4GHz CRMX by LumenRadio™ Transmitter

Update:  Firmware & DMX libraries trough USB
